The product specification of polycrystal solar cell <br/>-156P -5BB

The product specification of polycrystal solar cell <br/>-156P -5BB

Type Code：51H Black silicon PERC

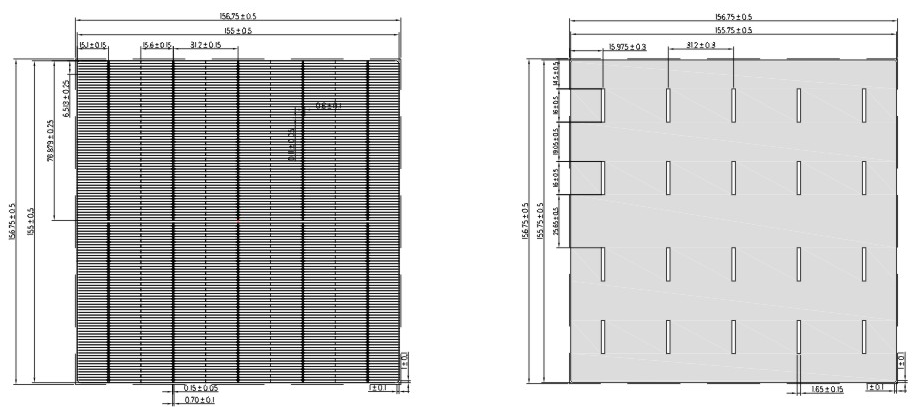

External Dimension

1、Dimension：156.75x156.75±0.50mm Chamfering：R=1mm

2、Front Busbar Width：0.7±0.1mm Fingers：120

3、Rear Busbar Width：1.65±0.15mm

4、Cell Thickness：200±20um

Characteristic

PID- FreeAOI Visual Inspection
Front Busbar Tension>2N/mmRear Busbar Tension>2N/mm

Temperature Coefficient

TKVoltage：a=-0.32%/K

TKCurrent：b=+0.06%/K

TKPower：r=-0.4%/K

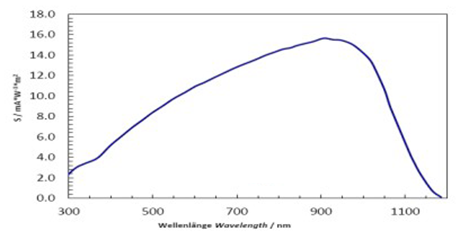

Spectral Response

Intensity（W/m2）VocIsc
10001.0
1.000
9000.90.995
5000.50.969
3000.30.947
2000.20.928

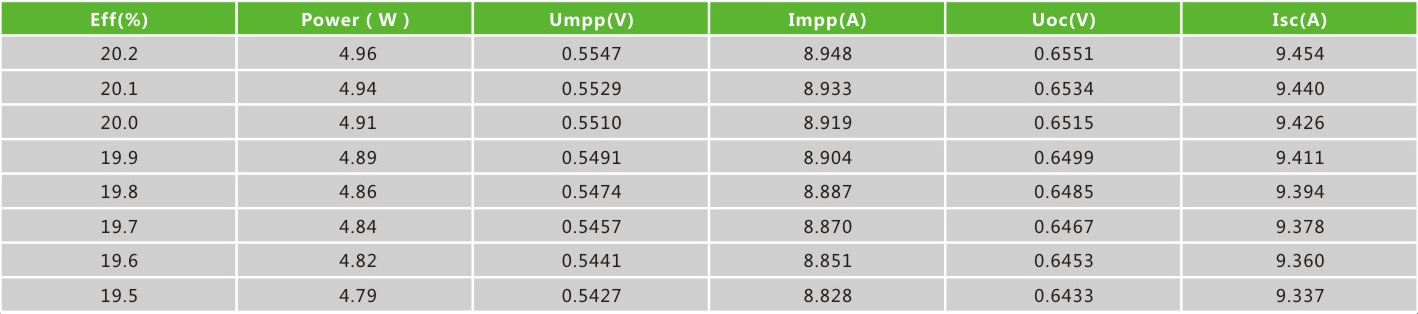

Electrical Patameters
