HOME     >     Products

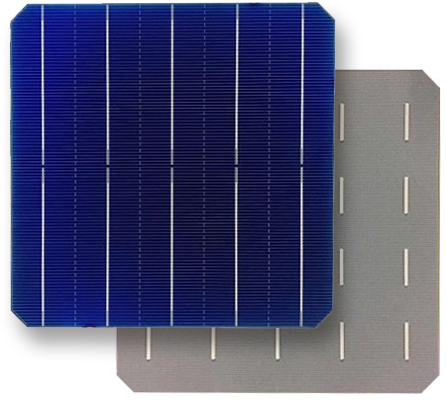

The product specification of monocrystal solar cell <br/>-156M-5BB

The product specification of monocrystal solar cell <br/>-156M-5BB

Type Code：M03 Monocrystal Silicon PERC

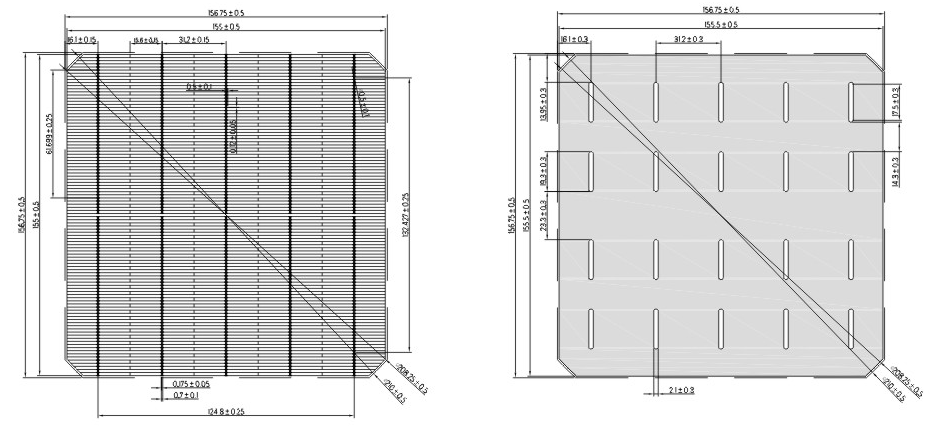

External Dimension

1、Dimension：156.75x156.75±0.50mm ; Chamfering：R=1mm

2、Front Busbar Width：0.7±0.1mm Fingers：104

3、Rear Busbar Width：2.1±0.3mm

4、Cell Thickness：180±20um

Characteristic

PID- FreeAOI Visual Inspection
Front Busbar Tension>2N/mmRear Busbar Tension>2N/mm

Temperature Coefficient

TKVoltage：a=-0.36%/K

TKCurrent：b=+0.07%/K

TKPower ：r=-0.38%/K

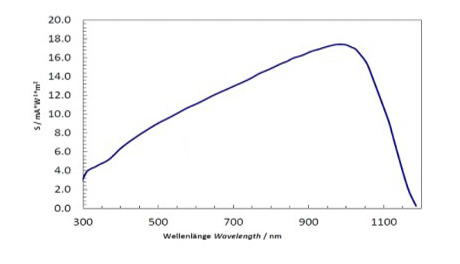

Spectral Response

Intensity（W/m2）VocIsc
10001
1
9000.990.9
8000.990.8
6000.980.6
4000.960.4

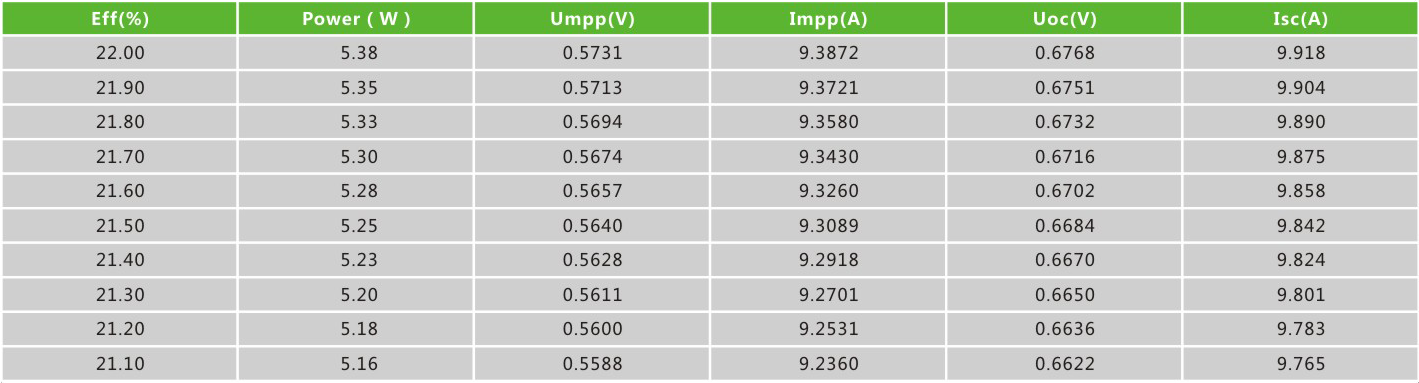

Electrical Patameters
